EL-NR0390G-ONL-1X-XX-BASB-MA

LIFTING PLATFORM AUXILIA 1 AND 2 - CAR WITHOUT DOORS - FLOOR LANDING SWING DOORS - “HOLD-TO-RUN” CONTROL.

National standard	Italian Law 13/1989 - Ministerial Decree of the Ministry of Public Works 236/1989 - Non-residential building

Model	AUXILIA 1 AND 2 - “HOLD-TO-RUN” CONTROL
Capacity	390 kg
Capacity	4 persons
Size	Large
Kind of shaft	Metallic shaft in indoor environment
Car accesses	Single access
Type of car doors	Without doors
Type of floor landing doors	Single swing
Position of doors	Overhanging the shaft

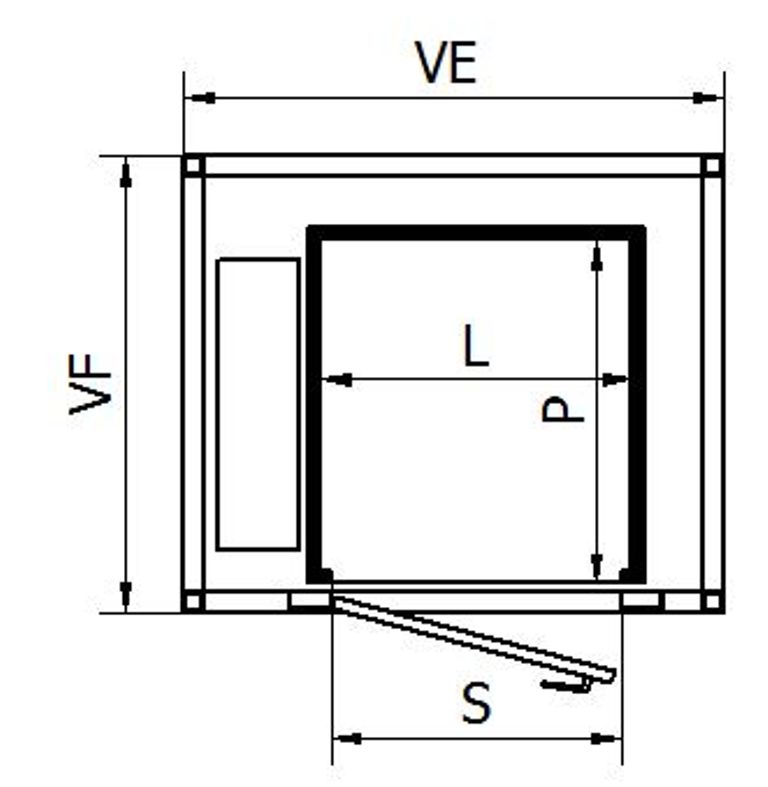

Car width (L)	1100 mm
Car depth (P)	1400 mm
Doors opening (S)	800 mm
Larghezza vano esterno (VE)	1580 mm
Profondità vano esterno (VF)	1620 mm

Car height (H)	2000 mm
Shaft (FH) Standard Reduced	Placeholder 200 mm 100 mm
Head (TH) Standard Reduced	Placeholder 2400 mm 2150 mm
Width of unloading area	1500 mm
Depth of unloading area	1500 mm

Note

Data valid for plants with standard fittings.
Speed 0.15 m/s.
AUXILIA 1 minimum head 2000 mm.
ELMA reserves the right to change without prior notice the data on this data sheet.

Review

10/12 LC01/ / SC01 / A

This technical sheet is available on the web site www.elmaonline.it
